Extension Blocks
The Slotted Adjustable Square and Clamp Rail are versatile clamping elements forframing larger work pieces. Use the moveable square with large clamp squares to provide extra work holes in tight spaces.

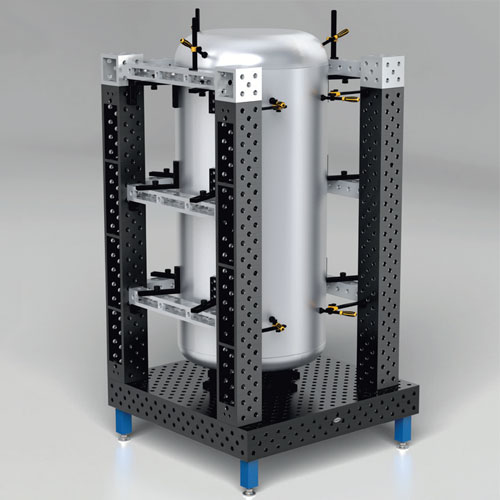

Riser Block
Riser Blocks are ideally suited for table extensions or large vertical setups. Plasma nitride fi nish comes standard. All Riser Blocks available in sizes up to 4,000 mm long on special order. Also available in 400 x 200 mm and 400 x 400 mm profiles.
SAFETY NOTE: Riser Blocks should only be joined to the table using connector bolts (Item S1-280560 or S1-280550-1). Do not use fast clamping bolts or other available bolts to join.
 |
 |
 |
Slotted Adjustable Square Cast Iron
S1-280302 |
Clamping Rail
S2-280303 |
Riser Block
S2-280370-P |
| Артикул | Наименование | Длина (mm) | Ширина (mm) | Высота (mm) | Вес (kg) |
|---|
| S1-280302 |
Slotted Adjustable Square Cast Iron |
500 |
100 |
100 |
16 |
| S2-280303 |
Clamping Rail 1000 |
1000 |
100 |
100 |
48 |

| Артикул | Наименование | Длина (mm) | Ширина (mm) | Высота (mm) | Вес (kg) |
|---|
| S2-280396-P |
Riser Block 200 x 200 x 200 |
200 |
200 |
200 |
29 |
| S2-280360-P |
Riser Block 500 x 200 x 200 |
500 |
200 |
200 |
61 |
| S2-280370-P |
Riser Block 1000 x 200 x 200 |
1000 |
200 |
200 |
120 |
| S2-280380-P |
Riser Block 1500 x 200 x 200 |
1500 |
200 |
200 |
170 |
| S2-280390-P |
Riser Block 2000 x 200 x 200 |
2000 |
200 |
200 |
2205 |
| S2-280391-P |
Riser Block 2400 x 200 x 200 |
2400 |
200 |
200 |
255 |
|
